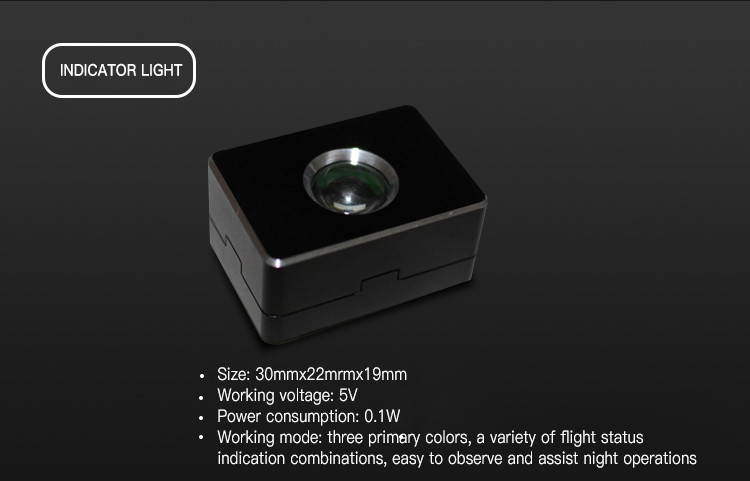

Size: 30mmx22mrmx19mm
Working voltage: 5V
Power consumption: 0.1W
Working mode: three primary colors, a variety of flight statusindication combinations, easy to observe and assist night operations

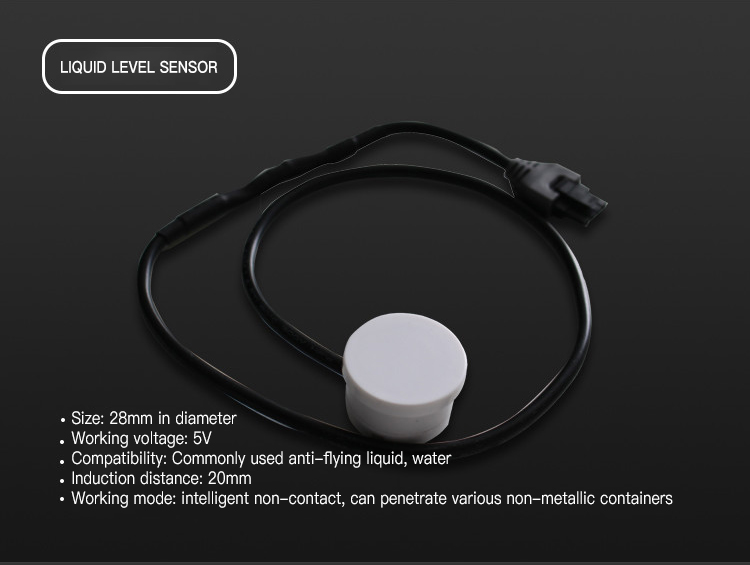

Size: 28mm in diameter
Working voltage: 5V
Compatibility: Commonly used anti-flying liquid, water
Induction distance: 20mm
Working mode: intelligent non-contact, can penetrate various non-metallic containers

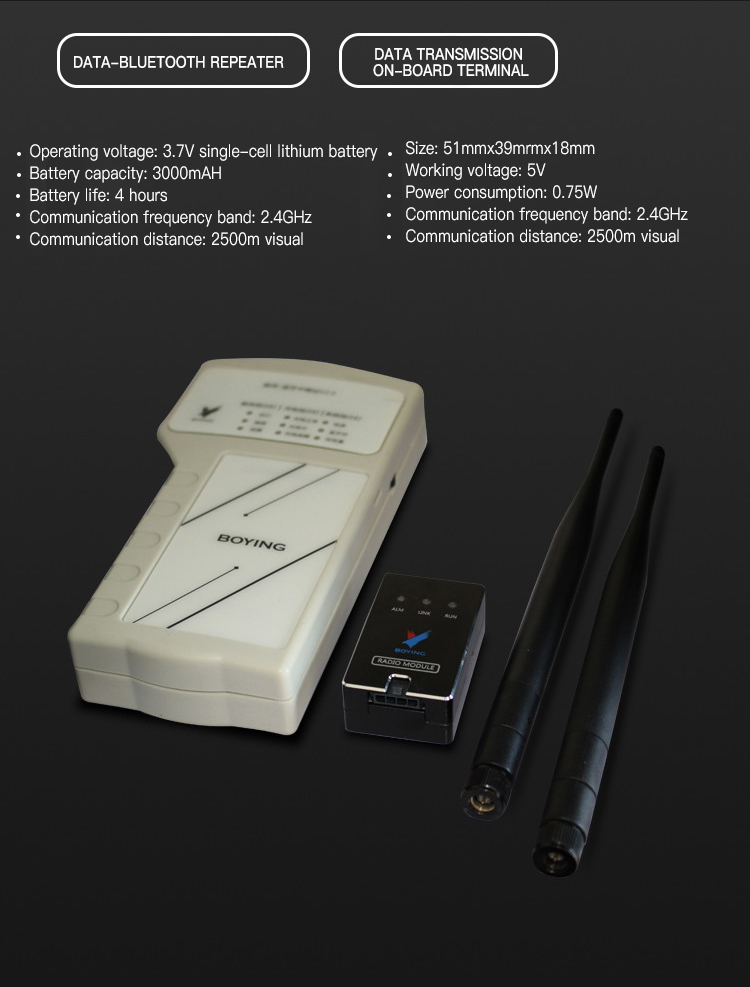

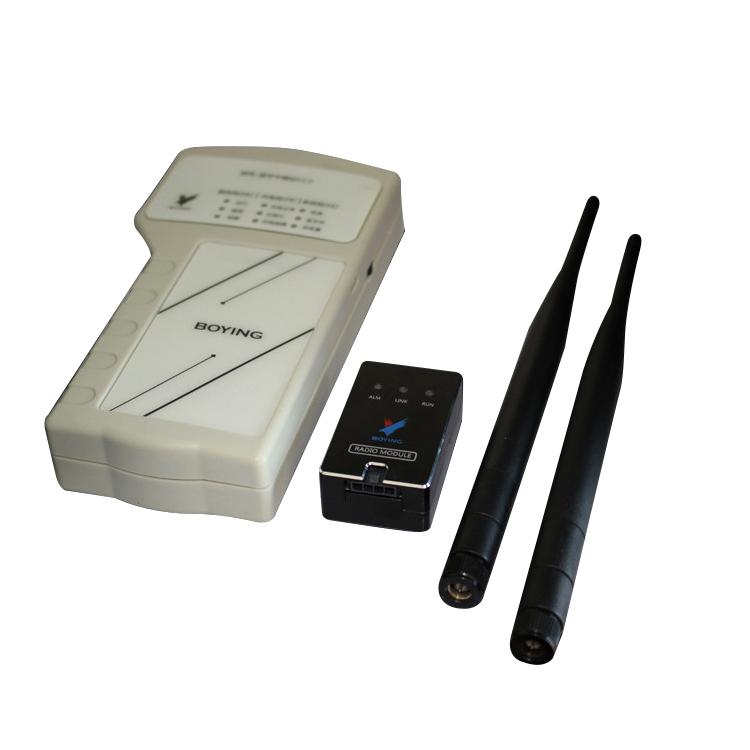

Operating voltage: 3.7V single-cell lithium battery
Battery capacity: 3000mAH
Battery life: 4 hours
Communication frequency band: 2.4GHz
Communication distance: 2500m visual
Size: 51mmx39mrmx18mm
Working voltage: 5V
Power consumption: 0.75W
Communication frequency band: 2.4GHz
Communication distance: 2500m visual

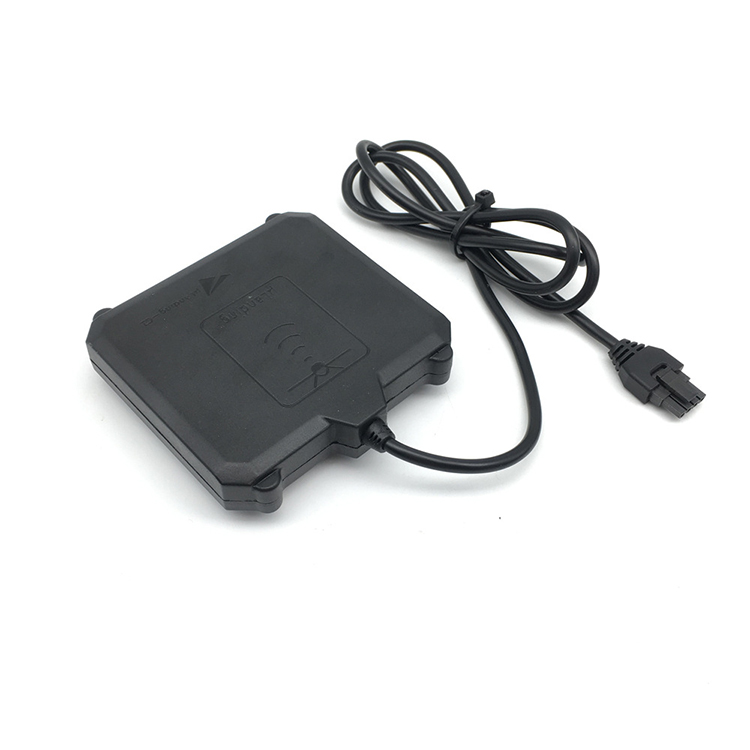

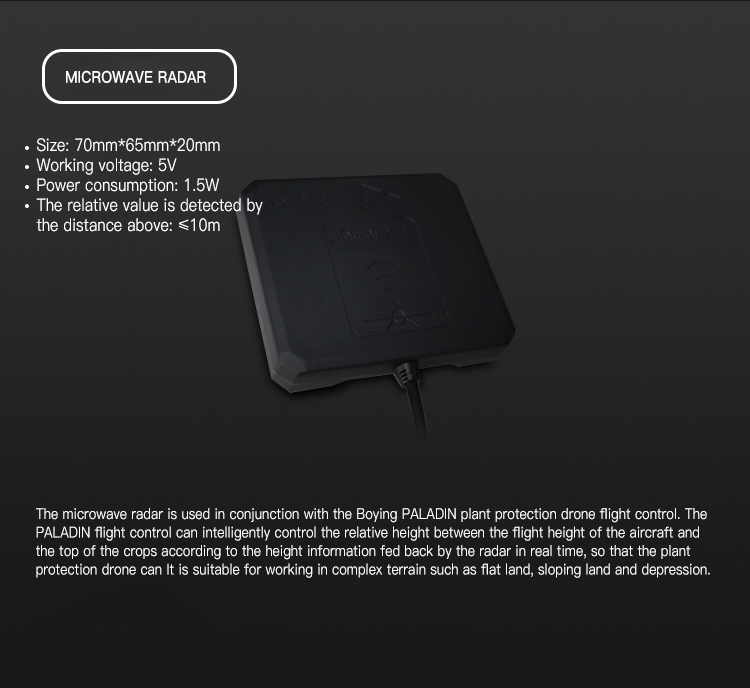

Size: 70mm*65mm*20mm
Working voltage: 5V
Power consumption: 1.5W
The relative value is detected bythe distance above: <10m

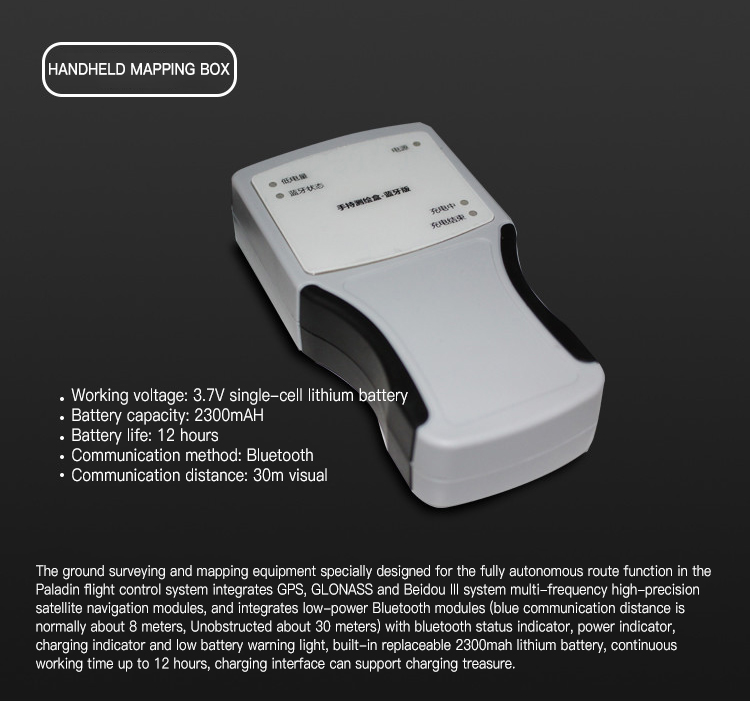

Working voltage: 3.7V single-cell lithium
batteryBattery capacity: 2300mAH
Battery life: 12 hours
Communication method: Bluetooth
Communication distance: 30m visual

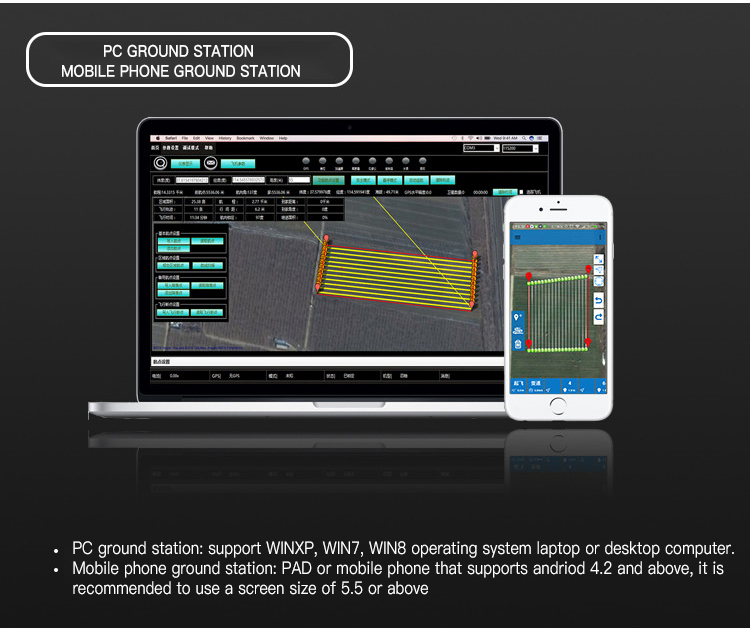

PC ground station: support WINXP, WIN7, WIN8 operating system laptop or desktop computer
Mobile phone ground station: PAD or mobile phone that supports andriod 4.2 and above, it isrecommended to use a screen size of 5.5 or above

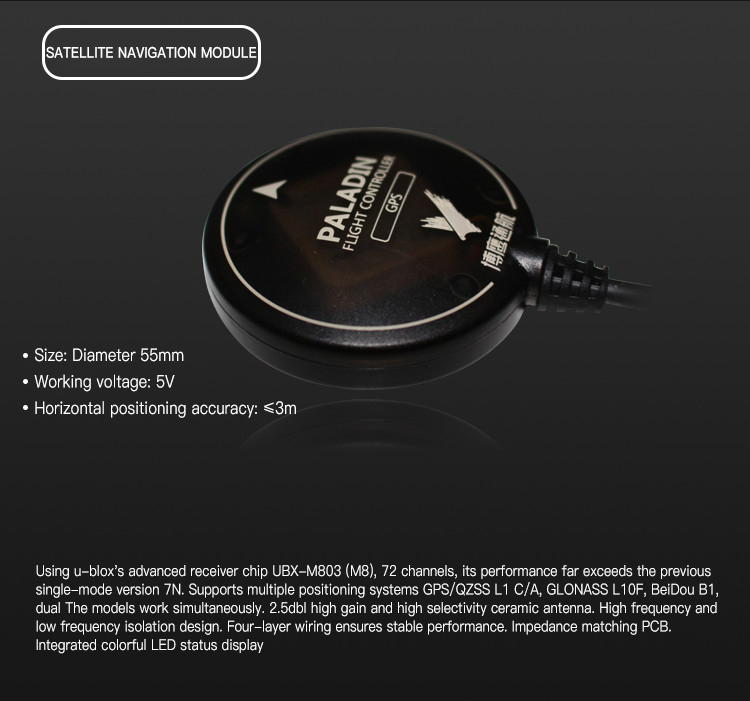

Size: Diameter 55mm
Working voltage: 5V
Horizontal positioning accuracy: <3m
Using u-blox's advanced receiver chip UBX-M803 (M8), 72 channels, its performance far exceeds the previous
single-mode version 7N. Supports multiple positioning systems GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
dual The models work simultaneously. 2.5dbl high gain and high selectivity ceramic antenna. High frequency ano
ow frequency isolation design. Four-layer wiring ensures stable performance. lmpedance matching PCB.
Integrated colorful LED status display
