| Quantity: | |
|---|---|

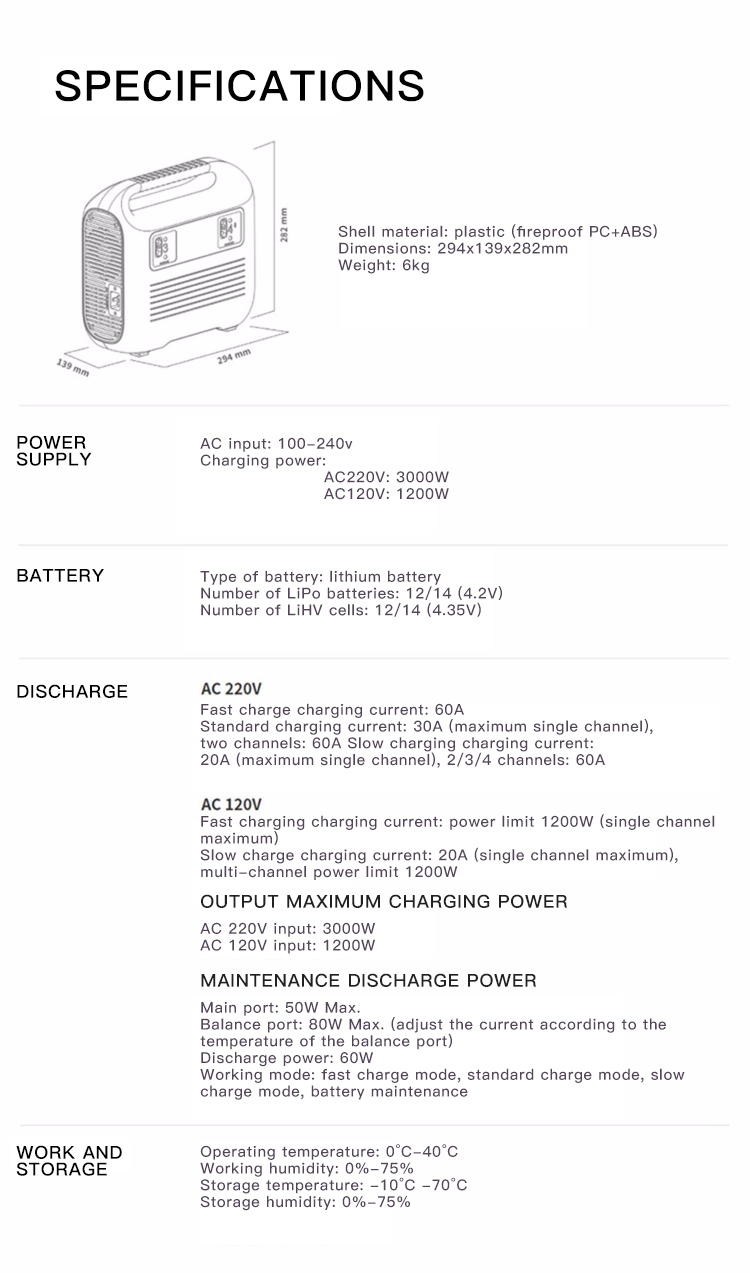

Number of LiHV cells: 12/14(4.35V)
AC 220V
Fast charge charging current: 60AStandard charging current: 30A (maximum single channel).two channels: 60A Slow charging charging current:20A(maximum single channel).2/3/4 channels: 60A
AC 120V
Fast charging charging current: power limit 1200W (single channelmaximum)Slow charge charging current: 20A (single channel maximum).multi-channel power limit 1200W
OUTPUT MAXIMUM CHARGING POWER
AC 220V input: 3000WAC 120V input: 1200W
MAINTENANCE DISCHARGE POWER
Main port: 50W Max.Balance port: 80W Max.(adjust the current according to thetemperature of the balance port)Discharge power: 60WWorking mode: fast charge mode, standard charge mode, slowcharge mode,battery maintenance

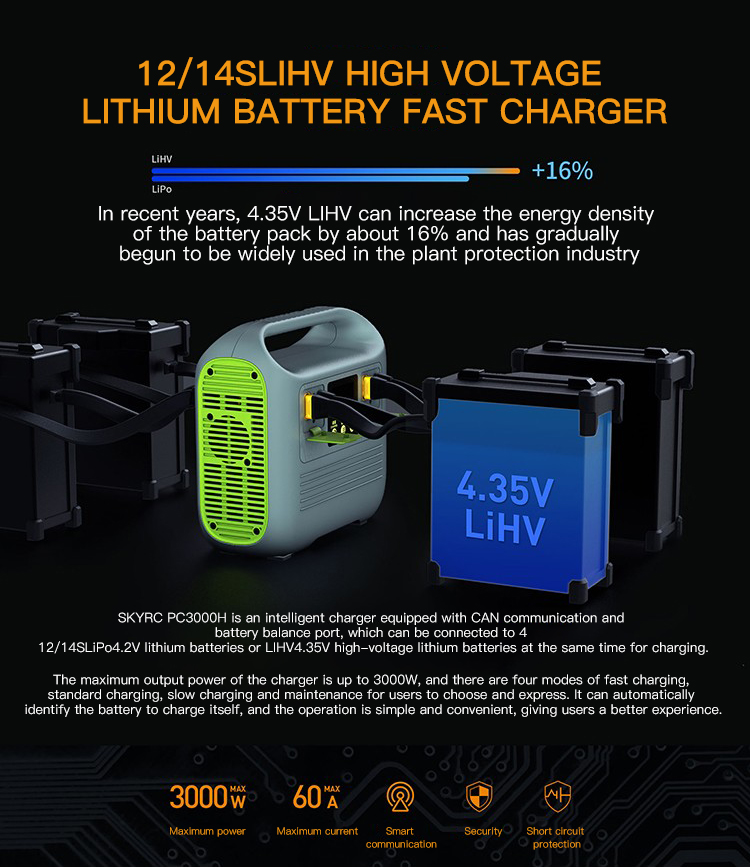

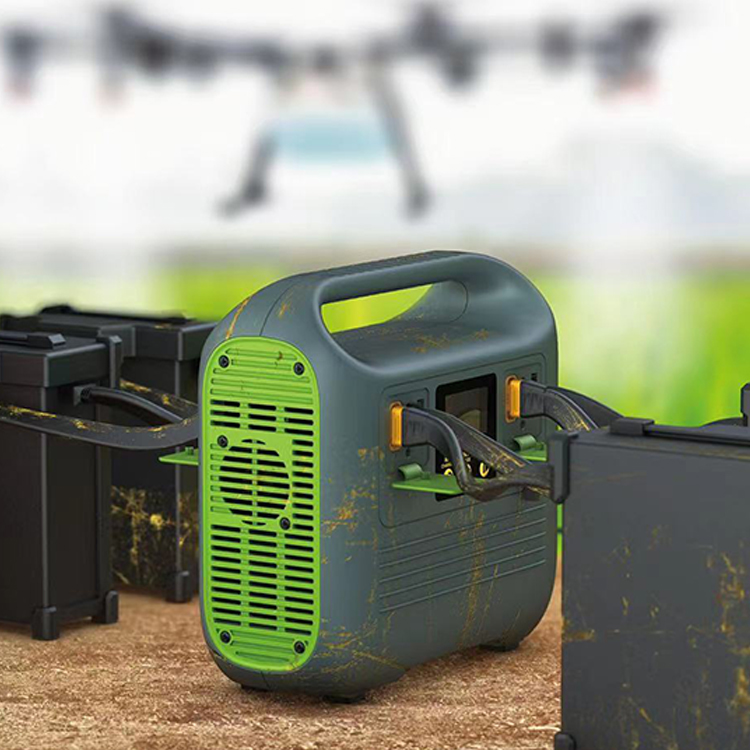

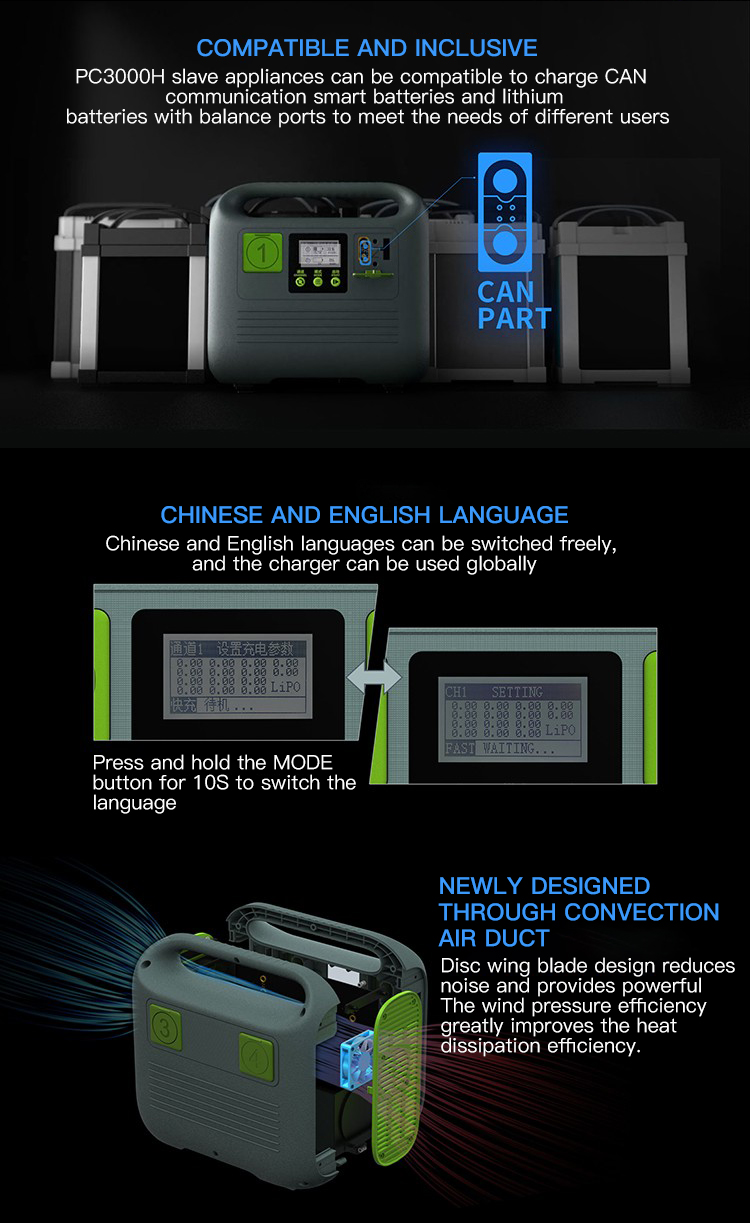

SKYRC PC3000H is an intelligent charger equipped with CAN communication andbattery balance port, which can be connected to 4

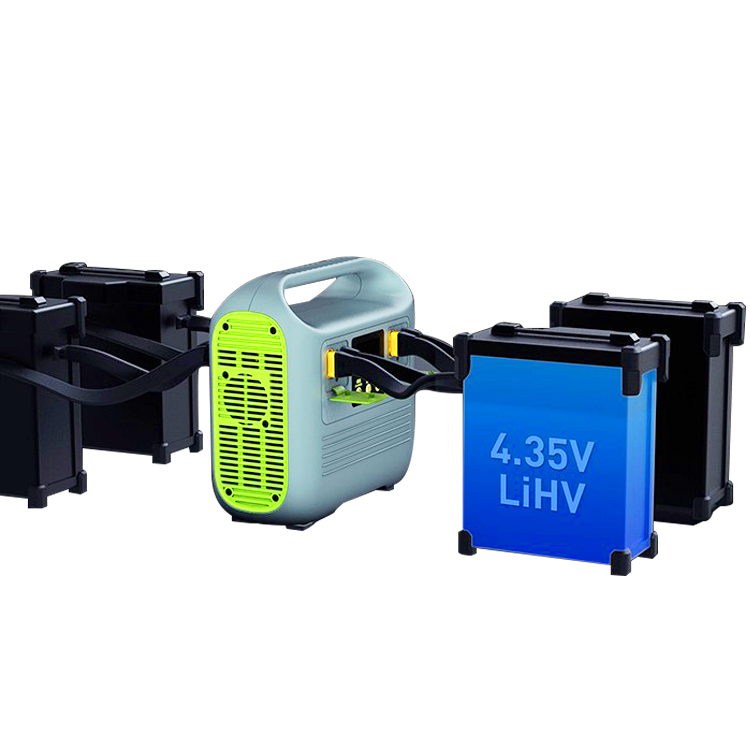

12/14SLiPo4.2V lithium batteries or LIHV4.35V high-voltage lithium batteries at the same time for charging

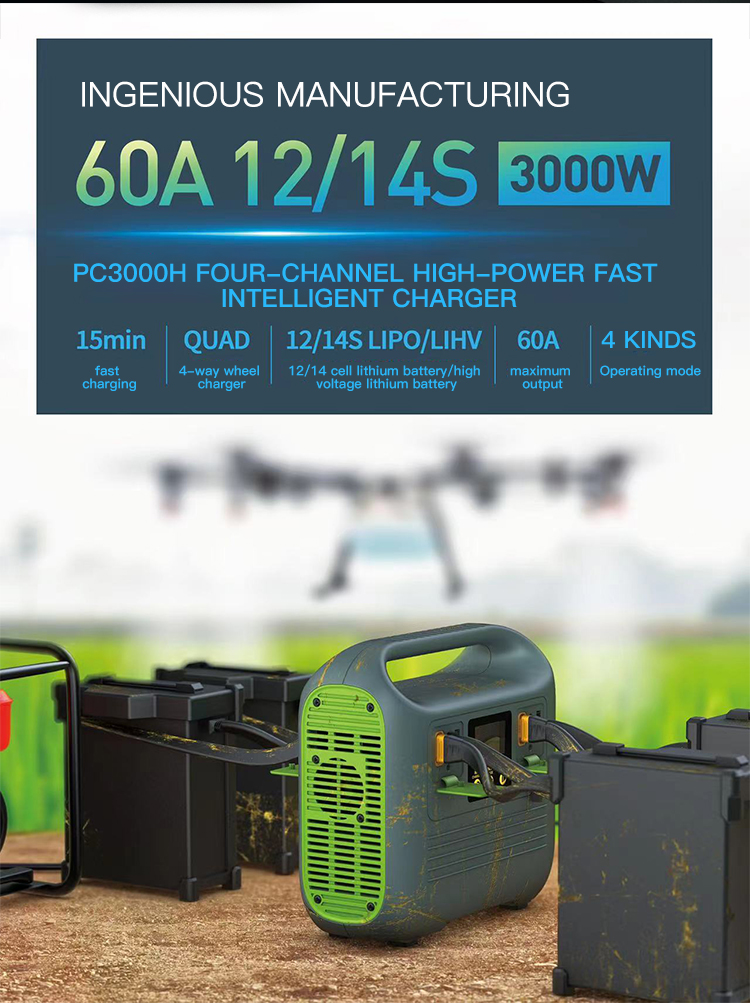

The maximum output power of the charger is up to 3000W, and there are four modes of fast charging.standard charging, slow charging and maintenance for users to choose and express. lt can automaticallyidentify the battery to charge itself, and the operation is simple and convenient. giving users a better experience

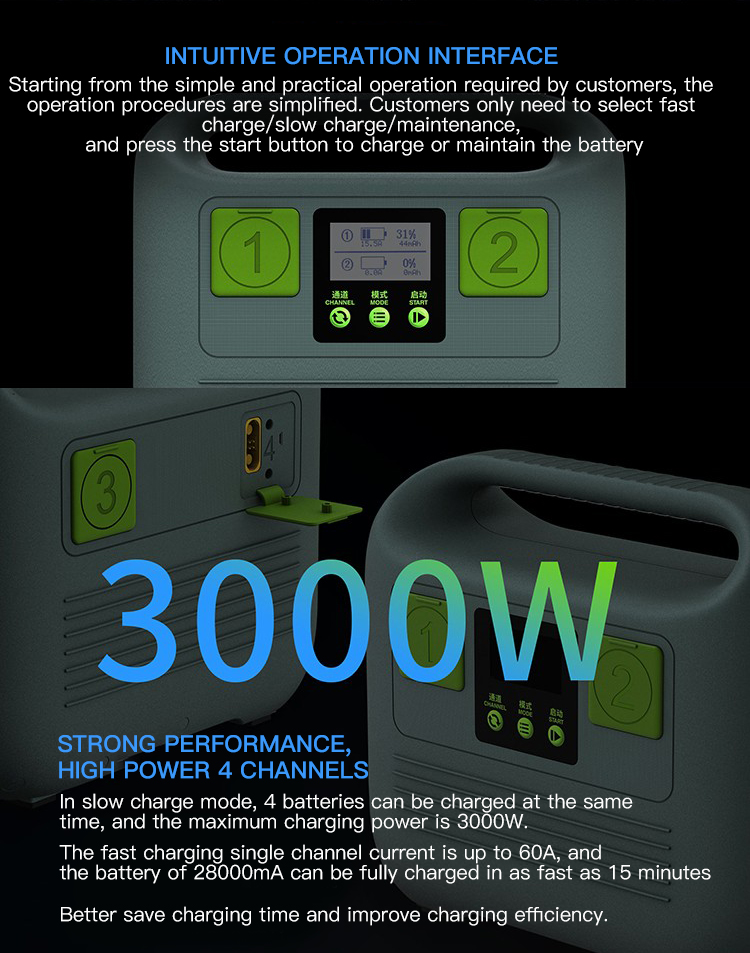

In slow charge mode, 4 batteries can be charged at the sametime, and the maximum charging power is 3000W.The fast charging single channel current is up to 60A, andthe battery of 28000mA can be fully charged in as fast as 15 minutes
Better save charging time and improve charging effciency
Number of LiHV cells: 12/14(4.35V)
AC 220V
Fast charge charging current: 60AStandard charging current: 30A (maximum single channel).two channels: 60A Slow charging charging current:20A(maximum single channel).2/3/4 channels: 60A
AC 120V
Fast charging charging current: power limit 1200W (single channelmaximum)Slow charge charging current: 20A (single channel maximum).multi-channel power limit 1200W
OUTPUT MAXIMUM CHARGING POWER
AC 220V input: 3000WAC 120V input: 1200W
MAINTENANCE DISCHARGE POWER
Main port: 50W Max.Balance port: 80W Max.(adjust the current according to thetemperature of the balance port)Discharge power: 60WWorking mode: fast charge mode, standard charge mode, slowcharge mode,battery maintenance
SKYRC PC3000H is an intelligent charger equipped with CAN communication andbattery balance port, which can be connected to 4
12/14SLiPo4.2V lithium batteries or LIHV4.35V high-voltage lithium batteries at the same time for charging
The maximum output power of the charger is up to 3000W, and there are four modes of fast charging.standard charging, slow charging and maintenance for users to choose and express. lt can automaticallyidentify the battery to charge itself, and the operation is simple and convenient. giving users a better experience
In slow charge mode, 4 batteries can be charged at the sametime, and the maximum charging power is 3000W.The fast charging single channel current is up to 60A, andthe battery of 28000mA can be fully charged in as fast as 15 minutes
Better save charging time and improve charging effciency
