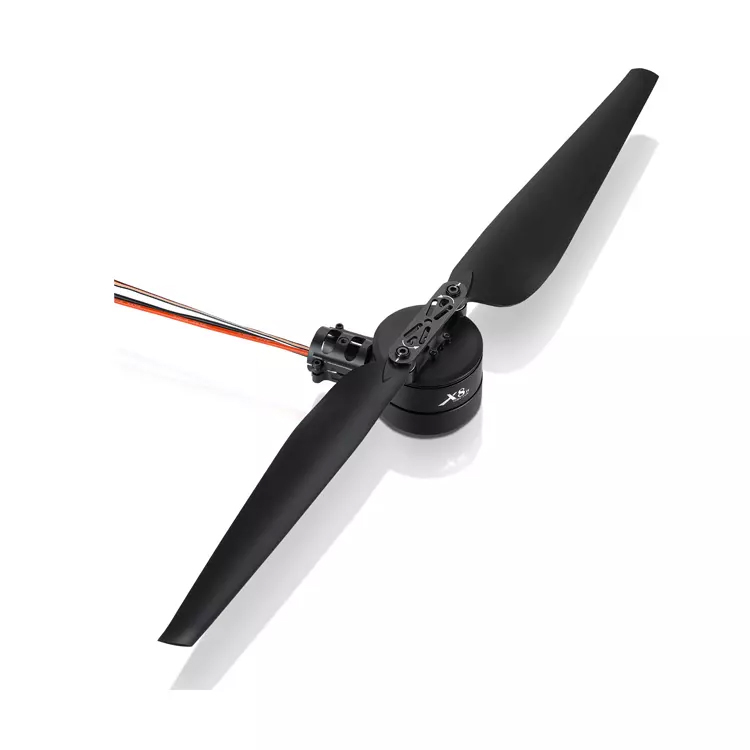

X8 Motor Full Set for Drones X8 Power Suit Plant Protection Unmanned Aircraft Electric Adjustment Integrated Motor Four Axis Six Axis Eight Axis Multi-rotor

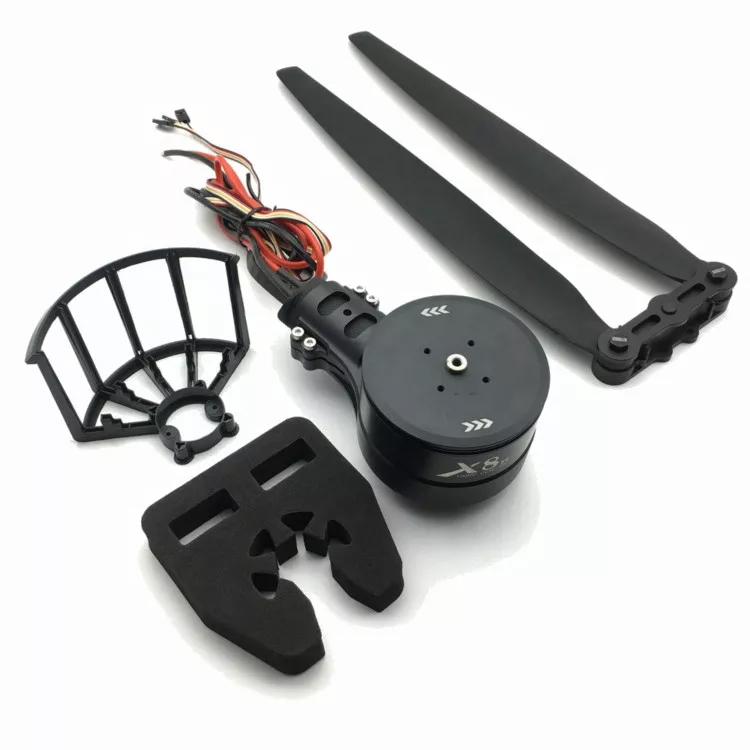

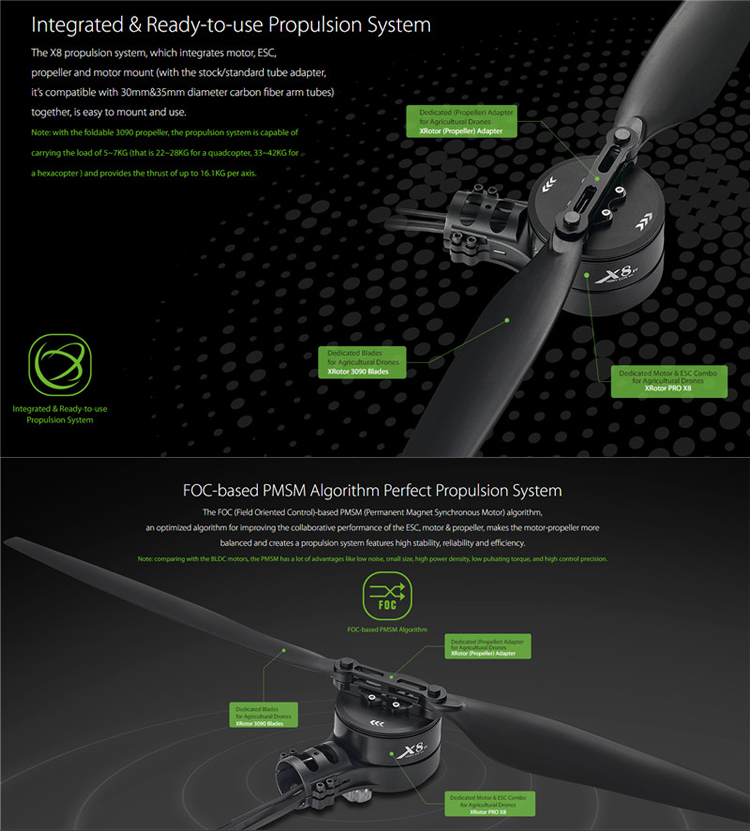

X8 Motor full set Adapted to 30 inch paddles

Maximum tension: 15.3kg/ shaft

Recommended battery: 12S LiPo

Recommended take-off weight: 5-7kg/ axle

Powertrain weight: 1150g

Overall protection level: IPX7

Ambient temperature: -20℃~65℃

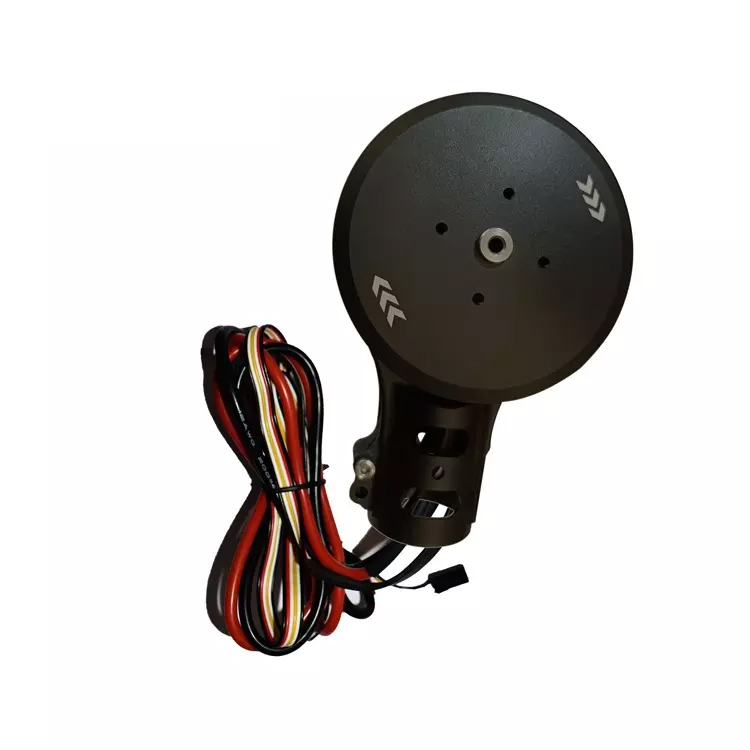

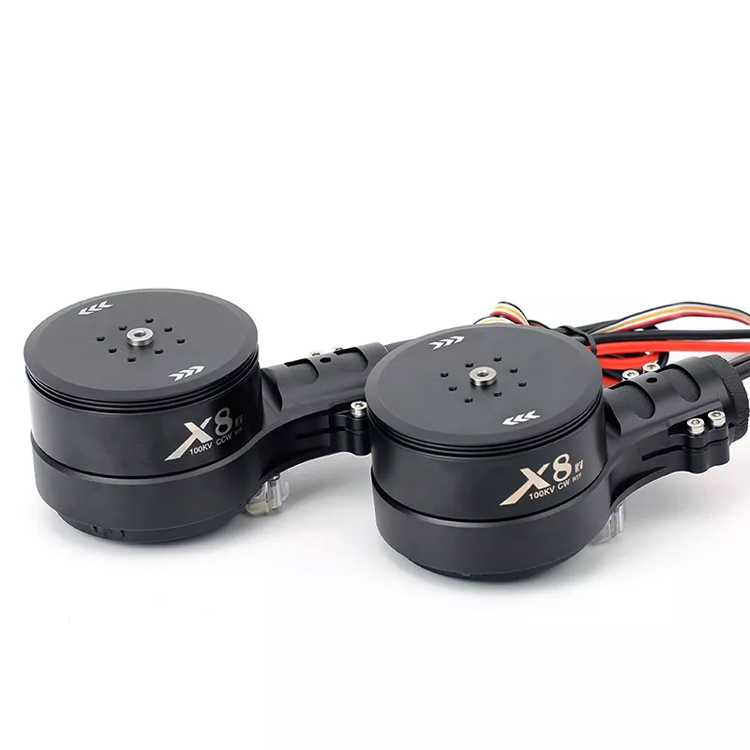

motor

Stator size: 81*20mm

KV value: 100KV

Applicable carbon tube diameter: Φ35/40mm/Φ30mm (pipe diameter adapter is required)

Bearing: NSK bearing (waterproof)

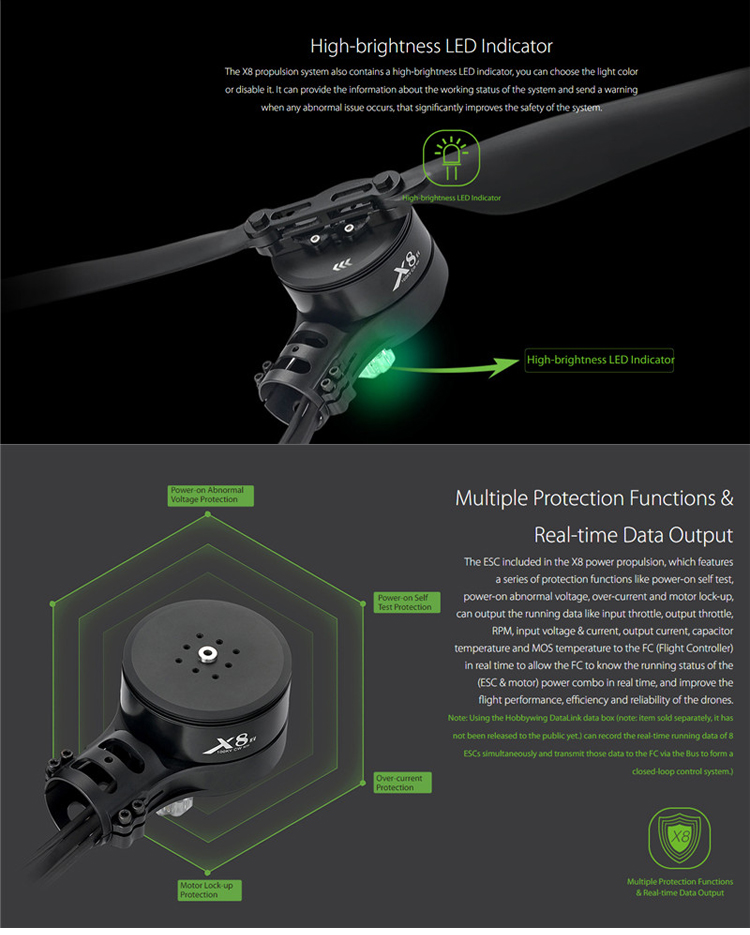

Electric modulation

Support battery: 12S LiPo

PWM input signal level: 3.3V/5V (compatible)

Compatible signal frequency: 50-500Hz

Working pulse width: 1100us-1940us (cured, calibration not supported)

Maximum allowable voltage: 52.2V

Maximum allowable current: 80 A (good heat dissipation condition is required)

Maximum allowable peak current (10 seconds) : 100A (good heat dissipation condition is required)

Nozzle installation thread hole: Φ28.4mm-2*M3

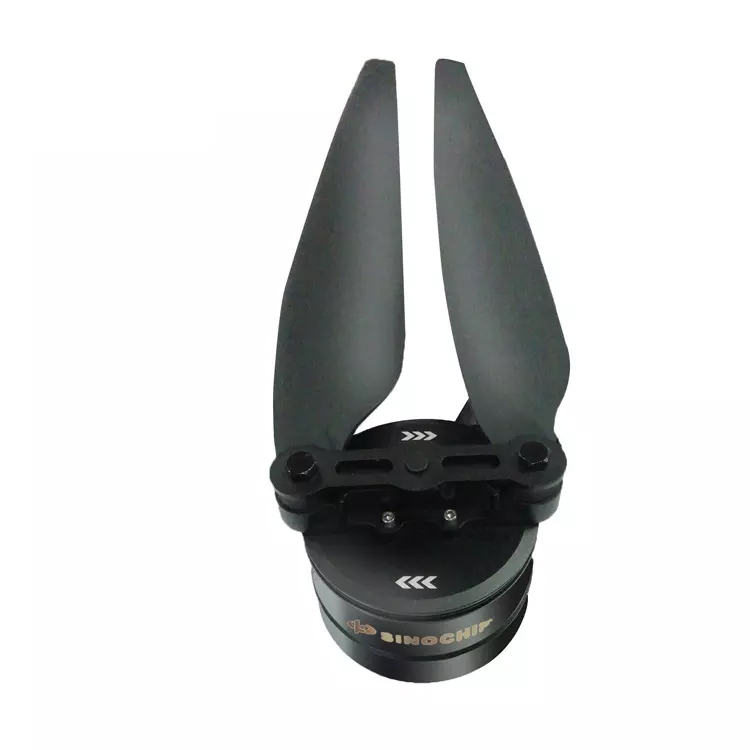

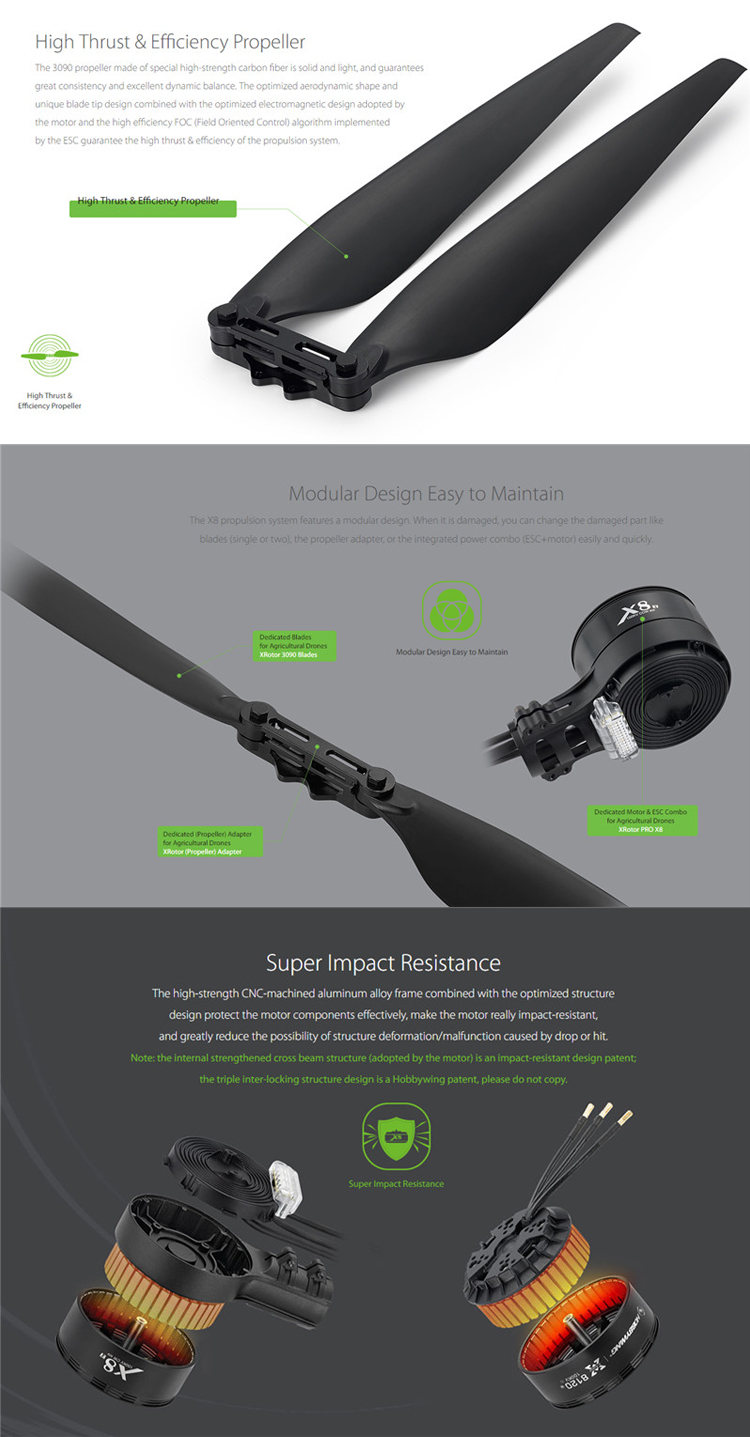

propeller

Diameter x pitch: 3090/3011

Weight: 190g
